Product Description

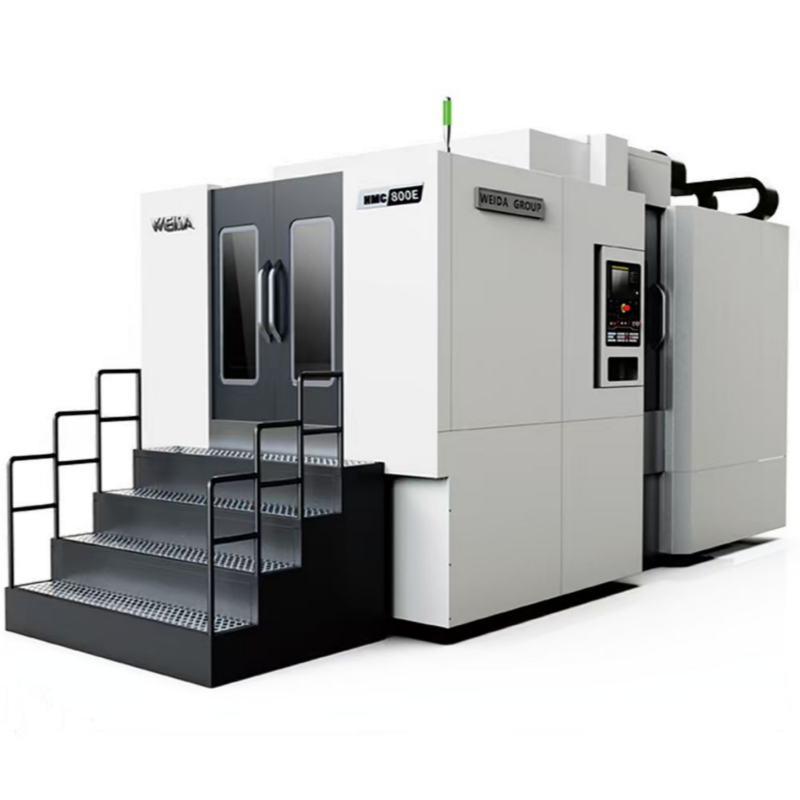

This machine tool is a dual-station horizontal machining center with a positive T structure, controlled by the CNC system. It features automatic indexing of the rotary table. It supports linear, angular, and circular interpolation cutting, enabling operations such as milling, boring, drilling, expanding, reaming, and tapping, achieving four-sided machining. It is suitable for processing box-type parts and complex-shaped parts in industries such as automotive, aerospace, metallurgy and mining, and machine tool manufacturing. The machine offers high efficiency, high precision, and high rigidity, making it an effective solution for improving work efficiency and flexible part processing. It is an ideal choice for medium to large batch production.
Product Performance
- The machine bed adopts an integrated casting structure. The X-axis guide rail adopts a stepped structure with a lower front and a higher rear, enhancing the support performance against the axial cutting force of the spindle.
- The column adopts a stable triangular structure, reducing the weight of the moving parts and improving the anti-deformation ability.
- The XY axis adopts an integrated armor protection, which has a good protective effect and is suitable for rapid movement.
- Spindle bearings and main drive system gears are cooled by a high-power oil cooler to reduce thermal deformation of the spindle and ensure the machining accuracy.
- It is applicable to the processing of box-type parts in industries such as machinery, automobiles, ships, textile machinery, printing machinery, and agricultural machinery.
Standard Configuration
- Two-speed gearbox
- 30pcs arm type tool magazine
- Indexing rotary table (with original time scale)
- Double-position rotary exchange
- FANUC 3B CNC controller
- Dual-screw chip conveyor + chain-type chip conveyor
Option Configuration
- 40/60 pcs chain-type tool magazine
- Automatic tool measurement system
- Automatic workpiece measurement system
- High-pressure central coolant supply system
- Synchronous belt drive (ZF/BF available)
- Equipped with top spray chip removal function
Specifications
| Specifications | Unit | HMC800E |
|---|---|---|
| X axis travel | mm | 1400 |
| Y axis travel (table forward and backward) | mm | 1000 |
| Z axis travel (slider up and down) | mm | 1100 |
| B axis rotation range | 360° | |
| Max. diameter of working piece | mm | φ1200 |
| Distance from spindle axis to table surface | mm | 100~1100 |
| Distance from spindle nose to table center | mm | 200~1300 |
| Table size | mm | 800*800 |
| Max. table load | Kg | 2000 |
| Min. indexing unit | 0.001 | |
| Max. speed of turning table | rpm | 11.1 |
| Spindle taper | BT50 | |
| Max. spindle speed | r/min | 3000 |
| Spindle torque | N·m | 540/860 |
| Main motor power | Kw | 15/18.5 |
| Cutting feed speed | mm/min | 1-12000 |
| Rapid feed speed | mm/min | 30000 |
| Tool magazine type | Arm type | |
| Tool magazine capacity | pcs | 30 |
| Max. tool dia (full/empty) | mm | 125/250 |
| Max. tool length | mm | 400 |
| Max. tool weight | kg | 25 |
| Positioning accuracy (X/Y/Z) | mm | 0.012/0.01/0.01 |
| Repeat positioning accuracy (X/Y/Z) | mm | 0.006/0.006/0.006 |
| Positioning accuracy (B) | arcsec | 6 |
| Repeat positioning accuracy (B) | arcsec | 6 |
| CNC controller type | FANUC Oi MF(3B) | |
| Total control axes | Axes | 4 |
| Linkage axes | Axes | 4 |
Main Parts Photos
Machine bed
Machine column
Headstock
Rotary table
Pallet
Exchange table
Loading & unloading station
Tool magazine
Applicable Industries
Factory Tour
Exhibition
EMO
Shanghai
Beijing
End User Use Scene
Frequently Asked Questions (FAQ)
What are the primary machining capabilities of this machine tool?
This dual-station horizontal machining center supports linear, angular, and circular interpolation cutting. It is capable of performing operations such as milling, boring, drilling, expanding, reaming, and tapping for comprehensive four-sided machining.
What is the structure and design benefit of the machine bed?
The machine bed adopts an integrated casting structure. The X-axis guide rail utilizes a stepped design (lower front and higher rear) to improve the machine's support performance against the axial cutting force of the spindle.
What type of CNC controller is equipped as standard?
The machine is standardly equipped with a FANUC CNC controller (specifically the FANUC Oi MF 3B system) to manage high-efficiency, multi-axis operations.
What are the dimensions and maximum load capacity of the working table?
The table size is 800 mm x 800 mm, and it is built to support a maximum load capacity of up to 2000 kg.
How does the machine prevent thermal deformation during heavy operations?
The spindle bearings and main drive system gears are cooled continuously by a high-power oil cooler. This reduces thermal deformation and preserves machining accuracy over long runs.
What optional configurations can be added for automated tool and workpiece setup?
Options include an automatic tool measurement system and an automatic workpiece measurement system, allowing for quicker setup times and higher processing flexibility.
